Oil Contamination Control Systems

Extend the life of your equipment through dehydration, adsorption, and filtration methods.

Target the number one cause of damage and system failures to maintain productivity and reduce environmental exposure and liability.

Design & Manufacture of Filtration Systems

Are you in the market for in-line or portable filtration equipment? We design and manufacture the latest in cutting edge filtration systems to fit your specific needs. We specialize in the filtration and purification of hydrocarbon based fluids. We can design and manufacture standard and high vacuum oil purifiers that help you decontaminate, recycle, and improve the performance of various hydrocarbon fluids.

Get filtration equipment for:
Turbine Lube Oil Hydraulic Oil Engine Oil Gear Oil Light, Heavy Fuel Oils Fire Retardant Hydraulic Fluids	Dielectric – Transformer Fluids Heat Transfer Fluids Gasoline Solvents and Many Fluid Chemicals

Available systems listed below and include:

Extensive rental fleet for immediate filtration needs
Offline or online operation with kidney loop filtration
Use micro-glass media filter elements with Beta 1000 efficiency
Particulate can be removed from ISO 22/21/19 to ISO 15/11/09
Safety measures including bolted or unbolted protective lift cage and reflective tape for high visibility in low light conditions
Resettable breakers rather than one time use fuses to lower maintenance
Repair and system upgrades available
Crews are available for setup and monitoring. For more information on our Oil Contamination Control Services, click here.

System	Description	Features	Image

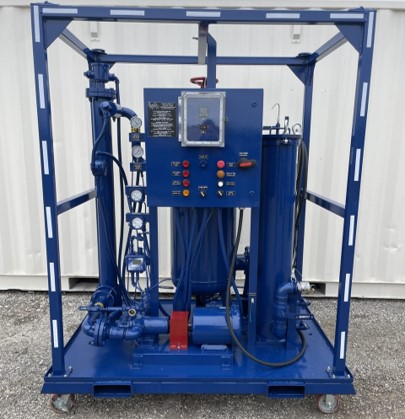

Particulate Removal Systems (PRS)	Return oil or fluids to their original state with this exclusive equipment designed for rapid removal of particulate contamination.	Heaters with low watt density and low oil level float Fine fluid filtration from ISO 32 to ISO 680 heavy gear oils and sized to meet custom flow rates, temperatures, and viscosities Process and high limit thermocouples on separate controllers Achieve 99.9% efficiencies for low industry setting particle counts Variable Frequency Drive (VFD) in the control panel to manage speed Available in stainless steel for chemical flushes

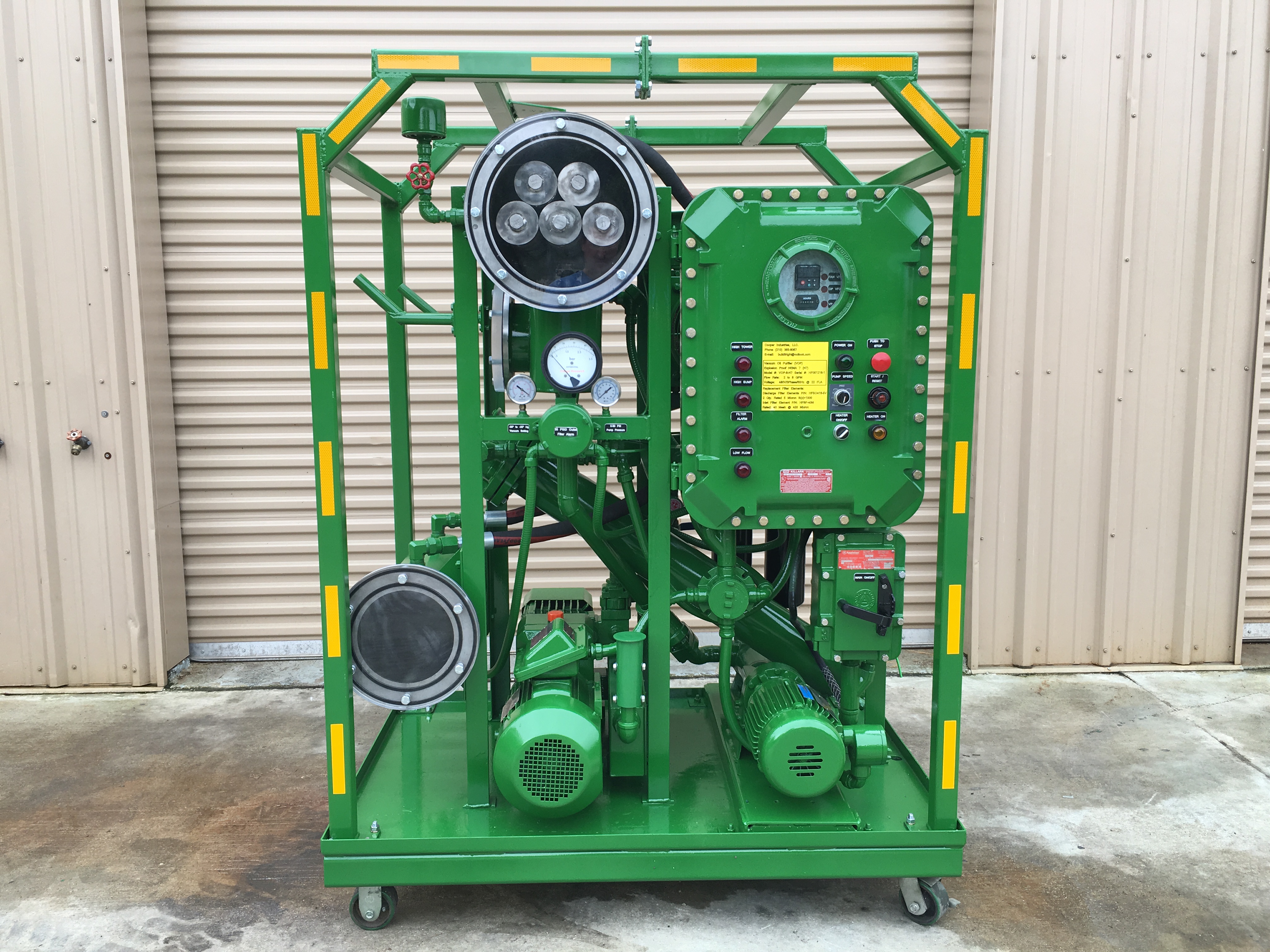

Vacuum Oil Purifier (VOP) / Vacuum Dehydrator Unit (VDU)	Increase oil longevity and maintain productivity on system components while removing free and emulsified water, dissolved gases, light hydrocarbons, solvents, and particulate contamination from lines, pipes and reservoirs during operation.	Flow rates of 5 to 50 GPM and maximum pump pressure of 80 PSI Fitted with high efficiency micro-glass media filters with typical removal rates of > 99.9% for the rated particulate size Variable Frequency Drive (VFD) in the control panel to manage speed Explosion proof, NEMA 4 and NEMA 7 (HAZOP) rated skids available Window to monitor process oil level and gas transfer Overheat protection

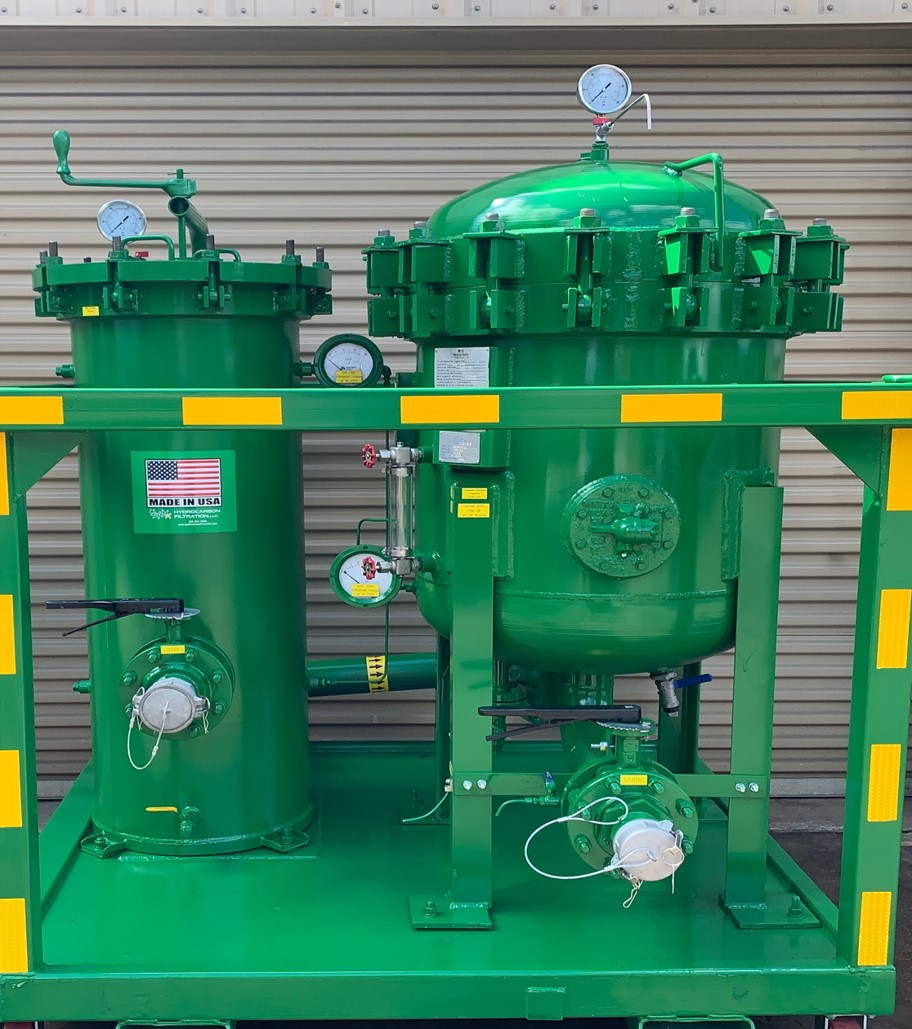

Fuel Coalescers (FCS)	When water and particulate contamination is removed from the fuel, the life of equipment is increased while machine downtime, operational costs, and maintenance workload are lowered substantially.	Left filter element attracts water by cohesion force Right filter element repels water by non-cohesion force Water is drained by manual and automatic water sensing valves Can remove water in fuel oil from an emulsified state as low as 25 PPM

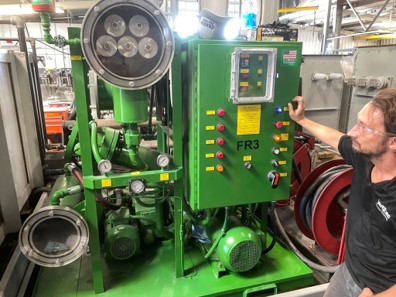

Transformer Oil Purifier (TOP)	Increase the life of your transformer and decrease oil costs with a transformer oil purification system designed to remove dissolved gases, water, light hydrocarbons, and particulate contamination from dielectric fluids and transformer oils.	Raises temperature to 150 degrees Fahrenheit and exposes oil to high surface area and -29” Hg or as low as 0.05 Torr within the vacuum chamber Flow rates of 5 to 30 GPM and operate on 480V at 30 to 120 amps with maximum pump pressure of 80 PSI Explosion proof, NEMA 4 and NEMA 7 (HAZOP) rated skids available Alarm lights and auto-shutdown when filters are plugged

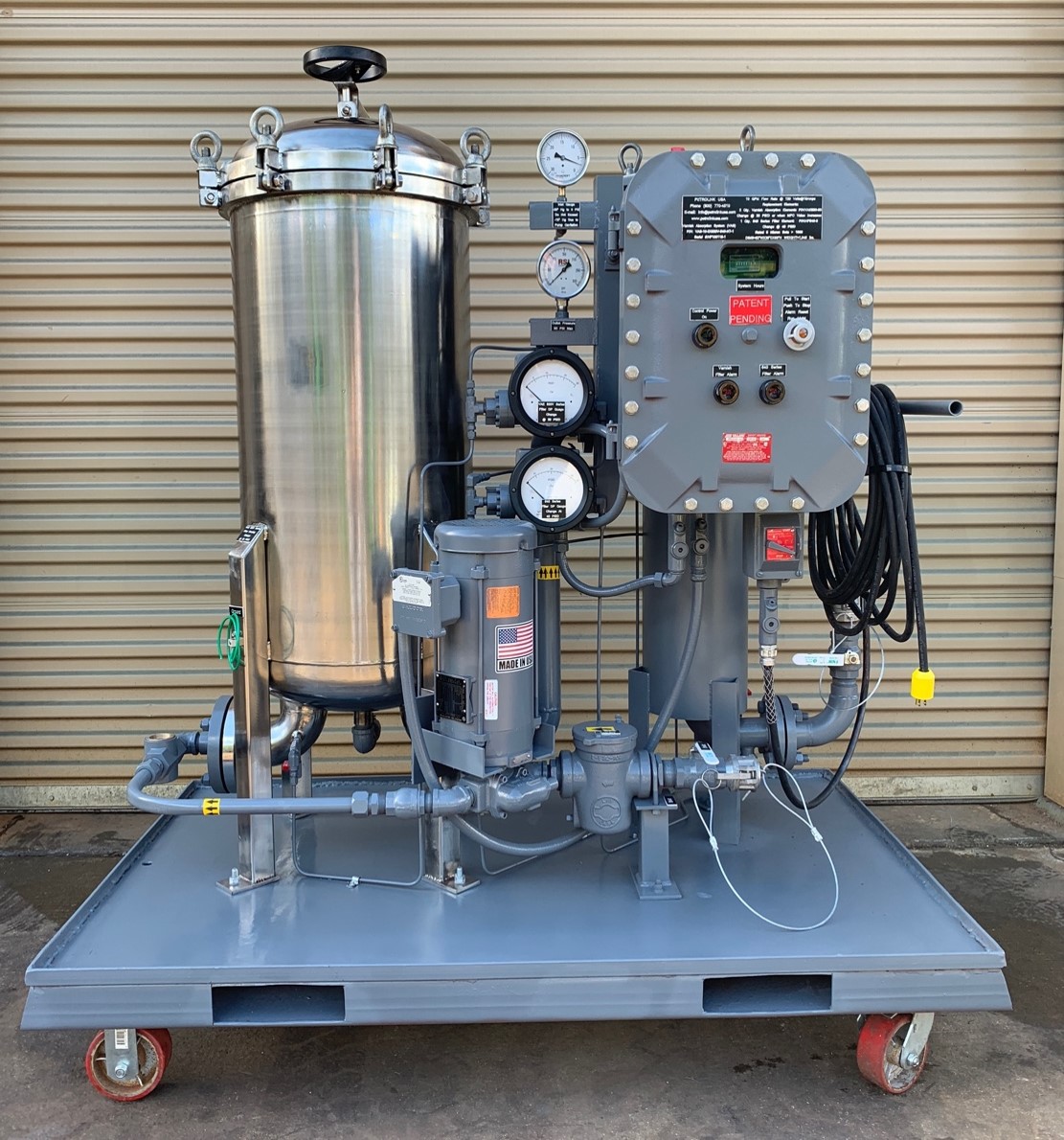

Varnish Absorption System (VAS)	Remove oxidation plated inside your turbine lube system, including bearings and servo valves both in operation or down.	Uses a granular adsorbent resin and fitted with a high-efficiency micro-glass filter element to remove hard particulate contamination Flow rate of 10 GPM and operate on 120V with maximum pump pressure of 80 PSI Outfitted with both pre- and post-filter sample ports for quick non-intrusive sampling Explosion proof, NEMA 4 and NEMA 7 (HAZOP) rated skids available Fuse protected electrical system with alarm lights and auto-shutdown when filters are plugged

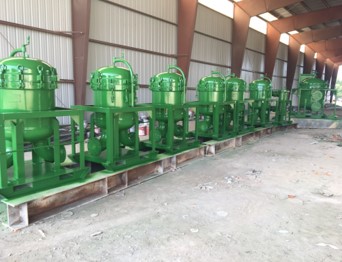

Filter Housings	Conco has a range of filter vessels available for rental and purchase.	Built from a selection of metals, including carbon steel, 304, and 316 Stainless Steel to increase corrosion resistance and eliminate the need for expensive coatings and oxidation within the filter vessels Provide sizing, design, and fabrication of custom ASME code and non-code filter housings

Unit Refurbishment & Repair

We routinely repair all competitor systems to improve performance and efficiency. Typical repairs are 30% to 50% the cost of a new system and we have the expertise to provide support for system made by other OEM’s.

We have repaired and upgraded the following OEM Systems:

Gulfgate / Henek
Oil Filtration Systems
Hypro
Pall
Parker

No Limit
Descase
Baron
High Purity
